Application Commercial
Description

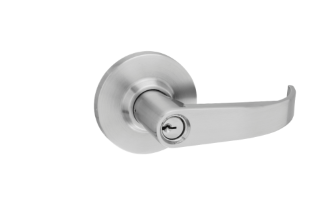

The Legge G2 keyed lever lock design has been based around the successful Schlage AL Series cylindrical lockset. The G2 Series is available in a variety of keyed and non-keyed functions. With functions privacy, entrance, passage, classroom, storeroom and dummy, this series is ideally suited for commercial exterior and interior doors.
Tested to over 400,000 cycles the Sparta lever (patent pending) is unique in its 35mm to 45mm clearance. Compliant to the AS1428:1-2009 Disability Code this product is a must for health and aged care facilities and suitable for most commercial projects.
Warranty
10 year mechanical and finish warranty
Door thickness | 35mm - 50mm |
Material | Exposed trim wrought brass. Levers pressure cast zinc |
Handing | Reversible |
Backset | 70mm Standard, also available in 60mm and 127mm |
Latchbolt | 13mm cast stainless steel latch |
Cylinder | 6 pin tumbler Schlage 'C4' keyway |
Click here to download the installation instructions
Click here to download the installation instructions
